 Chinese Mini Tug

Go down
Go to page : 1, 2  Next
AuthorMessage
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 11:03 am

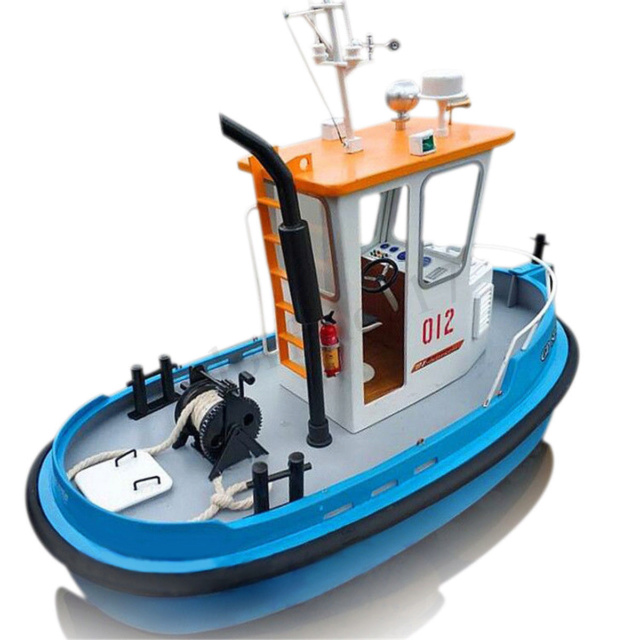

Chinese Mini Tug S-l16010

You may have seen these on ebay. I decided to have a go and ordered one. It arrived very quickly. I also ordered a different one which has not arrived yet.

Here's what you get.

Chinese Mini Tug Dscn1111 Chinese Mini Tug Dscn1110
Chinese Mini Tug Dscn1115 Chinese Mini Tug Dscn1113

In addition there are lengths of steel and brass wire. What there aren't is instructions and 3d printed parts shown in the Ebay llsting. I am not too bothered about the latter, but without instructions its more of a jigsaw puzzle than boat kit. I have been promised instructions from someone in the USA, and the seller has sent me a link.

I have managed to figure out the basics and got this far

Chinese Mini Tug Dscn1114

Not glued yet.

Barrie
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner

Posts : 1433
Join date : 2011-06-10
Location : Aberdare South Wales

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 2:08 pm

oh i've seen these scurrying about ebay once or twice, thought they looked great for a small project!

Look forward to seeing how it progresses!

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
nhp651
Captain (moderator)
Captain (moderator)
nhp651

Posts : 3919
Join date : 2011-06-11
Age : 68
Location : Fleetwood Lancashire

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 2:55 pm

yes, me two...…….fancied buying a couple a while ago to accompany that ferry I built...…….if I can't get the thing sailing straight, at least I can tow the sod and keep it straight that way...…..

so c'mon, barrie get building and soon.
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 5:34 pm

I think it could be quite a quick build if I let it Wink Wink
The quality of the laser cut ply and CNC plastic is quite good. The plastic will need the edges cleaning, but otherwise looks good.

Barrie
Back to top Go down
davidjt
Master
Master
davidjt

Posts : 458
Join date : 2013-01-08
Age : 67
Location : n wales coast

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 5:46 pm

hi barrie,
if you are interested there is a build of this boat on rc groups.com. the guy who has built it is called keith s . the title of the build is Q2 1/18 mini tug boat. it looks very small and fiddley to me  hope you enjoy it and all works out . sorry as you no I cant do links but it is there.


david
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 5:53 pm

Thanks David. If I get stuck I'll look for it.

Barrie
Back to top Go down
stavros
Forum Sponsor
Forum Sponsor


Posts : 272
Join date : 2011-06-13
Age : 59
Location : Bethesda in the land of the dragons...North Wales

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 6:45 pm

Hope it is not going to be a static model and one that actually sails


Dave
Back to top Go down
nhp651
Captain (moderator)
Captain (moderator)
nhp651

Posts : 3919
Join date : 2011-06-11
Age : 68
Location : Fleetwood Lancashire

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 6:50 pm

here you go barrie.

https://www.rcgroups.com/forums/showthread.php?3101663-Q2-1-18-mini-tugboat
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 7:44 pm

stavros wrote:
Hope it is not going to be a static model and one that actually sails


Dave
No Dave - it will sail.

Barrie
Back to top Go down
davidjt
Master
Master
davidjt

Posts : 458
Join date : 2013-01-08
Age : 67
Location : n wales coast

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 7:49 pm

thanks neil ,     glad some body knows what they are doing Embarassed


david
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 18, 2019 7:55 pm

nhp651 wrote:
here you go barrie.

https://www.rcgroups.com/forums/showthread.php?3101663-Q2-1-18-mini-tugboat
Thanks Neil. I was going to wait until I got stuck Shocked

Reading that it is obvious that there are various versions of this around, with varying degrees of kit completeness. I'm not sure how you select the seller that supplies the genuine article. They are all about the same price, and it appears from that blog that the same seller may supply two different versions. I selected my seller because it claimed to be UK shipped, although I worked out he was drop shipping. At least that way I thought I would avoid any chance of Duty.

As I said, I am not too worried about the missing pieces, and I should have some instructions by tomorrow.

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySat Jan 19, 2019 2:44 pm

The instructions have arrived - obviously from the original kit. The hull framework is now glues ready for sanding the frames then fitting the skins. I'm not sure if I dare wet or steam the skins as I am not sure of the quality of the ply. I may try a little heat.

I tested the little motor and it runs sweetly. On no load it draws very little current, less than half an amp. I need to buy an ESC and a propshaft and prop.

Barrie

Chinese Mini Tug Dscn1116
Back to top Go down
Damien
Captain (moderator)
Captain (moderator)
Damien

Posts : 3615
Join date : 2011-06-11
Age : 67
Location : Ballarat Vic. Aust.

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySun Jan 20, 2019 12:00 am

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup Too small for my eyes I'm afraid.
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyWed Jan 23, 2019 11:24 am

Yesterday I steamed the hull sides and clamped them to the hull. This morning I removed them and prepared to attach them. The material is 1.5mm ply and quite stiff. In trying to refit the first side I managed to snap it Embarassed Embarassed bounce bounce bounce

Chinese Mini Tug Dscn1119

I don't have any suitable material in stock. I did cut a new side from 0.8 mm ply, but the grain is the wrong way and I don't think it will do. I have glued the broken piece together, but doubt it will be strong enough. So two solutions - go and buy a suitable piece of ply or use plasticard. Rolling Eyes At the moment I am favouring the latter as I have the material in stock.
I made up the bow post - that's what all those mushrooms were for, and also the motor mount. There is a servo mount but I am not sure what sort of servo is supposed to fit it.
I've just ordered a prop shaft and prop.

Chinese Mini Tug Dscn1117 Chinese Mini Tug Dscn1118

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Jan 25, 2019 12:41 pm

I am going with a third solution - 1.5 mm ply but only 12 in wide. That will leave a gap at the stern which I will fill in. The ply I am using is much more flexible that that supplied, so I think it will be OK.
The first side has been glued on - just waiting for the glue to harden. I don't have enough clamps to do the second Rolling Eyes

Chinese Mini Tug Dscn1120

The ESC, servo and prop shaft came today. I have been sorting out brass and plastic tubing as the original of these tugs had a 3d printed fitting to take the prop shaft and create a skeg. This means that the hole which is cut into the hull bottom is too large for my slimline shaft. Similarly the rudder tube - the hole is quite large so will need adjustment. There is a plastic rudder blank in the kit, but I think I will make a brass one.

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySat Jan 26, 2019 2:41 pm

Side one stuck firmly 2thumbsup Now for side 2. This is cut from quality 1.5 mm birch ply. After steaming for a few minutes it fitted well. I stuck it with aliphatic without waiting for it to dry completely. and its is now stuck except for the bows which are under the most stress. I must have cut the side slightly over size, so some sanding will be required. Rolling Eyes
I patched the gap at the stern and this should blend in nicely.
Tomorrow I plan to stick on the hull bottom and that will then allow me to move onto the motor, prop shaft servo etc.

Barrie

Chinese Mini Tug Dscn1122 Chinese Mini Tug Dscn1121 Chinese Mini Tug Dscn1123 Chinese Mini Tug Dscn1124
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySun Jan 27, 2019 11:16 am

After adjusting the sides, the hull bottom was stuck down. Not a very good fit I'm afraid. I will have to strengthen the joint on the inside. That and a coat of resin inside will be the next jobs I think. I also want to fit an oiler to the prop shaft as it will exit be below the water line and so will need to be kept greased.

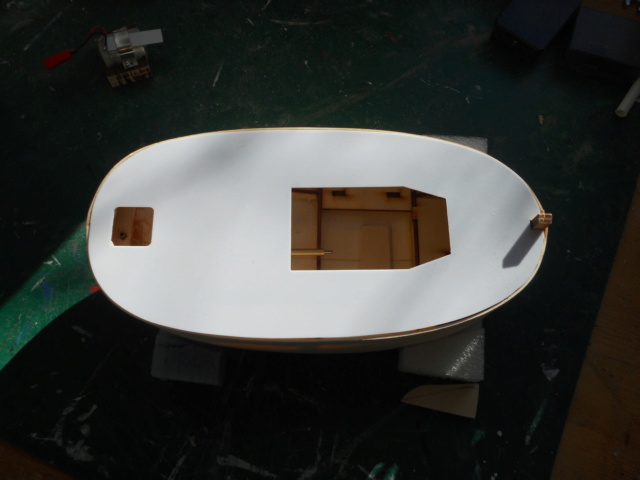

Chinese Mini Tug Dscn1125

I had a bit of luck this week and sold two of my boats 2thumbsup Last Saturday I took advantage of ebay's £1 fee weekend and listed my Yarra tug. Then someone on Mayhem was looking for a Damen Stan 1605 tug and I sold mine 2thumbsup 2thumbsup 2thumbsup 2thumbsup
So now there is room on the shelves and some money in the bank 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
I just need to find something that I want to build lol!

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyMon Jan 28, 2019 1:36 pm

Clamps removed and the bottom didn't drop off Rolling Eyes There looked to be one or two gaps so I set out to seal the inside with resin - except it had gone off Embarassed Embarassed. So Plan B - use EzeKote and some tissue to seal all the joints i could get at. Also brushed EzeKote over most of the inside. The I filled the outside. Wink

Next the prop shaft. I think this is too long, but its a bit difficult to size it up. Its not a problem as the bushes in the prop shaft will push out easily and go back when I've cut the tube. I did manage to fit an oiler tube ready to pump in some grease.

Barrie
Chinese Mini Tug Dscn1127  Chinese Mini Tug Dscn1126
Back to top Go down
Damien
Captain (moderator)
Captain (moderator)
Damien

Posts : 3615
Join date : 2011-06-11
Age : 67
Location : Ballarat Vic. Aust.

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyMon Jan 28, 2019 11:13 pm

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyWed Jan 30, 2019 1:05 pm

The propshaft is now installed. I didn't shorten the tube as I had forgotten that it was drilled out to take the bush. I have shortened the shaft. Fitting was tricky trying to line everything up, but I think it is OK now. I have secured it inside with some P40 (after taking the photo) and the bottom part of the skeg is next job. The rudder tube is in place, again secured with P40. Just got to make the rudder now Rolling Eyes. I hve sorted out the motor mount and this will be fixed soon. I will be using a rubber tube coupling.
The tops of the frames have been trimmed ready for fixing the deck, although I need to finish the internals before this happens. The deck doesn't fit too well. I'm not sure if it should be inside the hull sides or on top Rolling Eyes

Barrie

Chinese Mini Tug Dscn1129 Chinese Mini Tug Dscn1130 Chinese Mini Tug Dscn1128
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Feb 01, 2019 12:54 pm

Looking at that last photo, I realise that I should have cut off the head of the stem to leave a completely flat area for the deck Embarassed.
I now have a servo mount and also a rudder. The latter needs cleaning up. I also made a tiller.

Chinese Mini Tug Dscn1132

The P40 had left a neat finish on the underside of the hull, but it needed a little cleaning up and additional filler. Looking at this photo it need still more Rolling Eyes

Chinese Mini Tug Dscn1131

I need to decide if the rudder requires a bottom support. If so I will add a lower skeg to hold some brass strip to hold the bottom of the rod.

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySat Feb 02, 2019 12:55 pm

Rudder now installed - rod to be trimmed when I have made and fixed a lower support Rolling Eyes. the lower skeg has been fitted, waiting for some filler. I have also installed the servo and linkage, and glued the motor in place. I wasted quite a bit of time trying to bind a new Rx before abandoning it in favour of one I know works Embarassed. Having tried out the motor in situ, I'm not sure it is going to be powerful enough. There seems to be a lot of resistance on the prop shaft maybe I will change it for a 140 size.

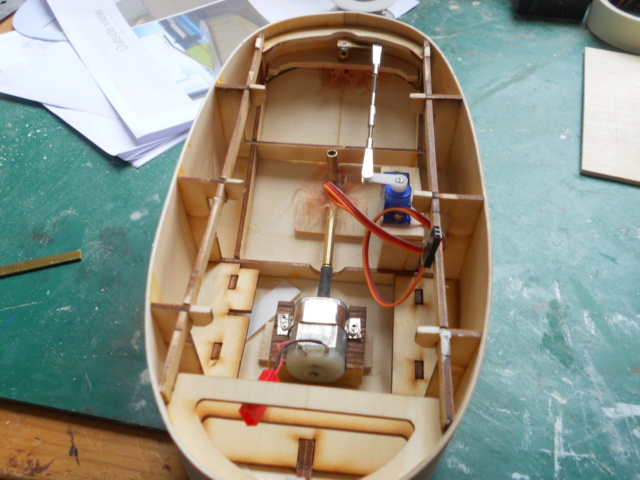

Chinese Mini Tug Dscn1134 Chinese Mini Tug Dscn1133

I also made a very crude stand from some scrap balsa - all my suitable ply has been consumed in making bits for my Grandson's finger skate park. Shocked Shocked Shocked Finally I test fitted one of the strips meant to simulate the extra strengthening round the top of the hull. I'm undecided what to use to stick this - super glue or epoxy? Its plastic onto wood.
Once painted I will add some half round foam rubber.

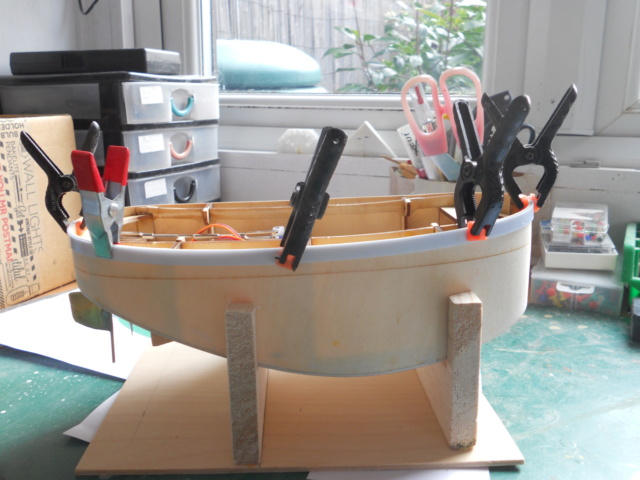

I have also worked out that the deck fits inside the hull sides. I think I have also worked out that the laser line is the waterline. Rolling Eyes

Chinese Mini Tug Dscn1136 Chinese Mini Tug Dscn1135

Barrie
Back to top Go down
stavros
Forum Sponsor
Forum Sponsor


Posts : 272
Join date : 2011-06-13
Age : 59
Location : Bethesda in the land of the dragons...North Wales

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySat Feb 02, 2019 5:39 pm

Be a devil and fit a proper motor in it a 500 then it will defo be powerful enough.....you don't drive a Ferrari flat out do you...MMMMM on second thoughts put a 600 in it !!!!!!!!!!

Dave
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySat Feb 02, 2019 6:52 pm

Thanks Dave only problem is I have a 180  I don't have either a 500 or 600 lol! lol! lol!

Barrie
Back to top Go down
nhp651
Captain (moderator)
Captain (moderator)
nhp651

Posts : 3919
Join date : 2011-06-11
Age : 68
Location : Fleetwood Lancashire

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySat Feb 02, 2019 8:55 pm

I've a few 500 derivatives barrie……….i'll send you one FOC if you want...…..i'm amazed at the amount of space in it for a tiny boat......looks great too.
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySun Feb 03, 2019 12:58 pm

Thanks for the offer Neil - I tried a 385 today and that won't fit so no hope for a 500 lol! lol! . I thought I had a 140 in stock but it turned out to be a no name which almost went up in flames on7.4 volts Embarassed . 140 ordered from Component Shop 2thumbsup
I made and fitted a bottom support for the rudder and also fitted the plastic stiffening round the top edge of the hull.  The hull is now ready for a coat of Ezekote. Thinking about the deck, I decided it should go on the top of the hull sides. If it goes inside there is nothing to support the edges Rolling Eyes . So I have cut a new piece from 1 mm plasticard.

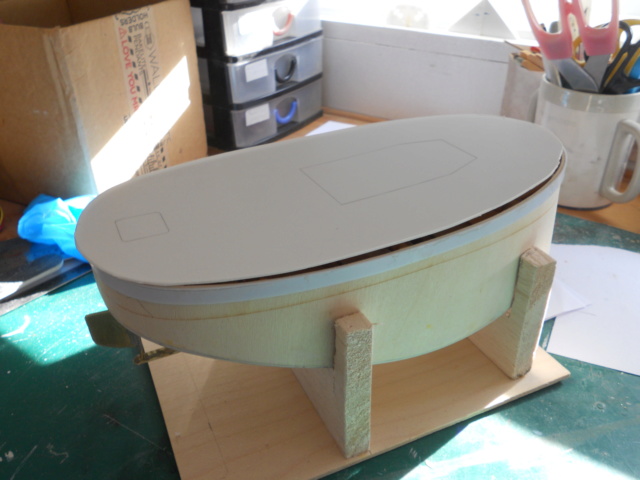

Chinese Mini Tug Dscn1138 Chinese Mini Tug Dscn1139 Chinese Mini Tug Dscn1137

Barrie
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner

Posts : 1433
Join date : 2011-06-10
Location : Aberdare South Wales

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyMon Feb 04, 2019 9:26 am

Very impressed so far with this little kit. I may actually pick one up and stick it in my to do pile!

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyMon Feb 04, 2019 12:54 pm

RR - in my version the wooden parts were excellent. I have just started looking at the plastic parts, and they are not quite so good. They appear to have been cut with router which has left a fuzzy edge to most of the parts, and on some it has obviously overheated leaving melted plastic on some cuts. Not disastrous, but will require a lot of work cleaning the edges. If you can find a supplier who includes the 3d printed parts, then its certainly worth the money - less than £40 from most ebay sellers. I am quite happy with my version. The 3d parts would have been nice, but not too difficult to replace with suitable items.

Chinese Mini Tug Dscn1141

No - even Component Shop aren't that good. The motor I ordered  yesterday did not miraculously appear this morning  - I took one from another model lol! All the bits now installed, wiring tidied as best I can and everything tested Thumbup I just have to make a mounting for the on-off switch. On these ESCs it does completely switch off the power, so a second one isn't needed. The flexible tube is because I sited the oiler in the wrong place Embarassed Embarassed

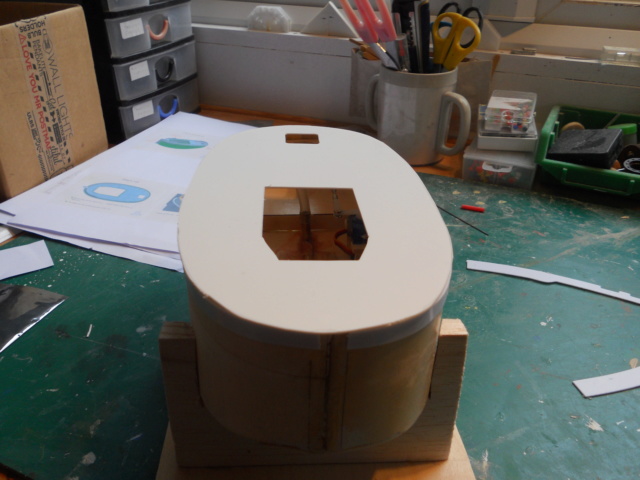

The outside of the hull has had a couple of coats of Ezekote resin. The openings have been cut in the new deck and this is ready for gluing once I have sorted out the switch mounting.

Chinese Mini Tug Dscn1140

Barrie
Back to top Go down
MickyK
Deck Hand
Deck Hand


Posts : 1
Join date : 2018-08-13

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyTue Feb 05, 2019 2:45 am

Hi,
I bought something similar, it was the "Sea Imp"

Your's looks much more complete, and better quality than mine!

It will be interesting to watch yours get to the pond.

Mine has turned into a scratch build!

Mick
Back to top Go down
Damien
Captain (moderator)
Captain (moderator)
Damien

Posts : 3615
Join date : 2011-06-11
Age : 67
Location : Ballarat Vic. Aust.

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyTue Feb 05, 2019 6:49 am

Coming along nicely Barrie.  2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyTue Feb 05, 2019 7:03 am

Thanks Damien.

MickyK there is a certain amount of scratch building with this one too. The basic hull was fine, but the plastic parts are not so good. They may need re-making when I start to put them together. Then there are no fittings so they all need making - exhaust, winch, radar etc. Because the 3d parts were not included, the prop shaft, skeg and rudder all had to be bought or made.
Having said that, I am quite pleased with it. I knew it was gamble as to how much I would get in the kit, and I still think its quite good value for money.
If you check out some of my other builds you will see that I often modify or remake parts if I am not happy with them.

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyTue Feb 05, 2019 7:10 am

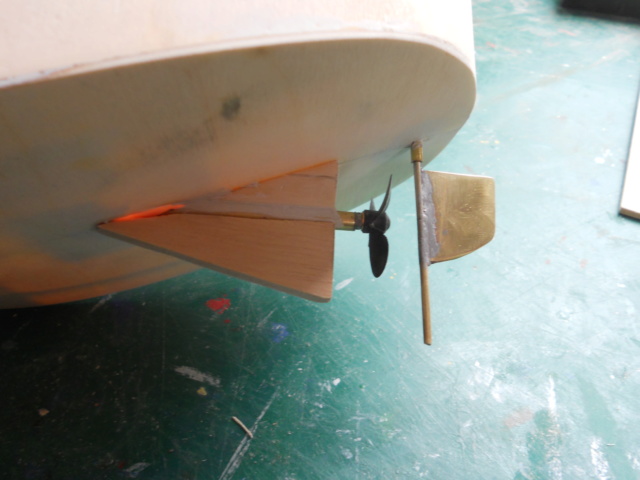

Before fixing the deck this morning I want to reduce the size of the rudder - its too fat. The 3d printed one that didn't come in the kit is very slim.

Chinese Mini Tug Dscn1142

I am also toying with the idea of increasing the opening in the deck and making a low hatch for the extra opening. But I'm not sure if this will weaken it too much. Watch this space.

Barrie
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner

Posts : 1433
Join date : 2011-06-10
Location : Aberdare South Wales

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyTue Feb 05, 2019 8:54 am

Yup clearly access is a bit of an issues but with all small boats this is usually the case, I can only suggest under deck support bracing around any new openings and combings to seal and hatch down and help with reinforcement.

As for the plastic parts in your kit... I’m not overly a fan of sticking plastics to wooden projects.. just happened to be that so many glues can never secure the job indefinitely... or maybe it’s my heavy hands... hmm

Either way given what you said about the plastic quality I see no reason to not possibly rebuild those parts in light ply, using the plastic as templates.

I’ve found a version of this kit for under £30 so given my usual build style it wouldn’t remain “stock” so spending a little on some extra ply wouldn’t be the greatest waste..

RR

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyTue Feb 05, 2019 11:11 am

RR - I decided against creating a new opening. I have added some additional strips under the existing main opening , primarily to give a better surface for the coamings. The only plastic to wood joins are the strip round the top of the hull, and the deck to the hull frame. For the first I used epoxy and it appears to have created a good bond. For the deck I have used liquid Gorilla glue, and my cunning plan is when that has set, I will seal the deck to the top of the plastic strip with liquid polystyrene  Shocked Shocked Shocked.
The superstructure is all plastic so I don't foresee any problems, just quite a bit of cleaning up the components

The rudder has been cut down and the switch mounted. Once the deck is stuck down and the edges trimmed it will be on to the superstructure and then painting.

Barrie

Chinese Mini Tug Dscn1143 Chinese Mini Tug Dscn1144
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyWed Feb 06, 2019 11:25 am

The deck edges were stuck to the plasticard round the top of the hull sides using polystyrene cement. The edges ere then trimmed. The 'bumper' was attached to the stem, and the coamings installed. While waiting for glue to dry, I cut out windows and glued the window frames to the superstructure. After painting the windows will be installed.

Chinese Mini Tug Dscn1145 Chinese Mini Tug Dscn1146

I think the next job is to install the bulwarks. I'm trying decide the best way to do this. There are no guides and they are glued to the deck. I think I need to install the bulwark supports first to give something fixed to help get the shape correct. There are some supplied, but I will probably make some more.

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Feb 08, 2019 1:01 pm

OK - started on the bulwarks today. First problem was the supports were very badly cut and too big Shocked. So I cut some new ones from 2mm plasticard and glued them to the deck.  When these had set I stuck the first side to the stem with superglue, then used liquid poly glue to fix the bulwarks to the supports and the deck. To avoid too much stress, I only went part way. Second problem, my Humbrol liquid poly wont come out of the bottle bounce bounce bounce bounce. I only bought Humbrol because the local shop didn't have Revell. Luckily there are some drops of Revell left in the bottle, and I've just ordered more. Third problem for today - they are not long enough. Not having any plans I had to guess how much to set them in from the deck edge, and used the stem as a guide. This will leave a gap at the stern which I will fill in.

While waiting for the above to set, I started on the cabin. Again with no plan the first problem is identifying the parts. There are lots of bits, but not all of them appear to have a use, and some bits are missing. Missing bits are not really a problem, just frustrating when you don't have a plan to cut new ones. Rolling Eyes

Barrie

Chinese Mini Tug Dscn1147 Chinese Mini Tug Dscn1148 Chinese Mini Tug Dscn1149
Back to top Go down
nhp651
Captain (moderator)
Captain (moderator)
nhp651

Posts : 3919
Join date : 2011-06-11
Age : 68
Location : Fleetwood Lancashire

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Feb 08, 2019 6:04 pm

i'm falling for this little beasty the more you build ….it really is an odd but very endearing little vessel...…

great job you are making of her, barrie.
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Feb 08, 2019 6:56 pm

Thanks Neil - its an interesting build. Part kit and part scratch without any plans Rolling Eyes

Barrie
Back to top Go down
Damien
Captain (moderator)
Captain (moderator)
Damien

Posts : 3615
Join date : 2011-06-11
Age : 67
Location : Ballarat Vic. Aust.

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyFri Feb 08, 2019 11:39 pm

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySat Feb 09, 2019 12:42 pm

The gunwales are now installed. In the end they did meet at the stern Thumbup I have also fitted the cappings to the bow. These were the only parts of the cappings in the kit. I need to decide if I am going to to try to make the remainder. Rolling Eyes
The cabin is stuck together. I think I will leave the roof off until I have painted the body and installed the windows. It will be much easier to do that through the top. I need to clean up the edges and also make an instrument panel and find a wheel. I think that it was intended to have a floor, but I am not sure if I will fit one. The supplied cover for the rear hatch is very big so that will be replaced by a smaller one.

Barrie

Chinese Mini Tug Dscn1150 Chinese Mini Tug Dscn1151 Chinese Mini Tug Dscn1152
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner

Posts : 1433
Join date : 2011-06-10
Location : Aberdare South Wales

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySun Feb 10, 2019 12:48 am

Looking excellent!

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySun Feb 10, 2019 1:21 pm

I tried to make the cappings this morning. The Port one worked reasonably well and is now fixed in place. The Starboard one didn't and will have to be re-made Rolling Eyes. The cabin is now finished with doors fitted ready for painting. I did consider building with one door open, but have stuck them both closed Thumbup I made a hatch for the front of the cabin, and the rear one over the tiller. This will be stuck down with double sided tape so that it can be removed if needed. I also started on the instrument panel, and found some bits to start making a winch.

Barrie

Chinese Mini Tug Dscn1153 Chinese Mini Tug Dscn1154
Back to top Go down
Damien
Captain (moderator)
Captain (moderator)
Damien

Posts : 3615
Join date : 2011-06-11
Age : 67
Location : Ballarat Vic. Aust.

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptySun Feb 10, 2019 11:50 pm

Looking terrific Barrie.  2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyMon Feb 11, 2019 12:45 pm

I finally got the others side done - took three more tries. Not sure why this was more difficult than the port side Shocked It still needs some trimming.

Chinese Mini Tug Dscn1155

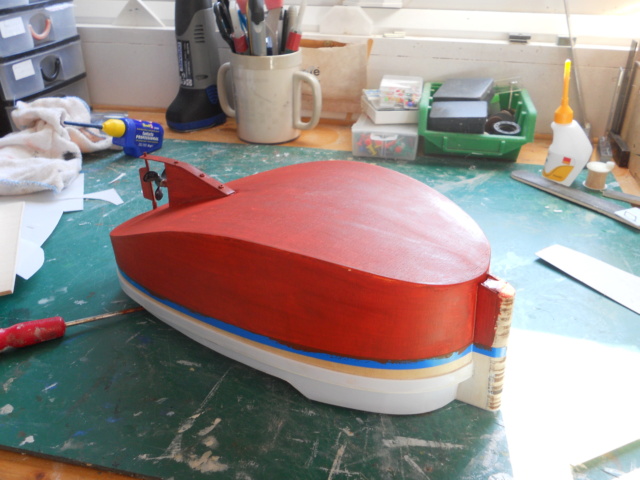

I then painted the underside of the hull. One coat of Red/Brown. It will need one or two more before some varnish.

Chinese Mini Tug Dscn1156

I also gave the cabin one coat of satin white. Then I realised I needed an exhaust pipe so went searching for suitable plastic tube. I also finished the hand winch, and added a radar display to the instrument panel, and painted the buttons etc. Need a throttle!. These two are ready for painting. I bought some bollards so the only other fittings are for the cabin roof - radar, searchlight horn etc.

Barrie

Chinese Mini Tug Dscn1157
Back to top Go down
nhp651
Captain (moderator)
Captain (moderator)
nhp651

Posts : 3919
Join date : 2011-06-11
Age : 68
Location : Fleetwood Lancashire

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyMon Feb 11, 2019 7:38 pm

barriew wrote:
Thanks Neil - its an interesting build. Part kit and part scratch without any plans Rolling Eyes

Barrie


I've got a Shannon lifeboat "kit" here mate...……..exactly the same...…...and it cost nearly 30 times yours......and yours looks better by far, pound for pound lol,
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyTue Feb 12, 2019 12:43 pm

The hull and cabin had second coats today. The hull will need a third I think. Its not covering very well.  Crying or Very sad I painted the winch and exhaust and made a throttle for the control panel. I also rooted through my bits box but didn't come up with much of use Crying or Very sad It looks as though I will have to make a wheel and the cabin roof fittings. Any tips for making a wheel David?

Barrie

Chinese Mini Tug Dscn1158
Back to top Go down
Damien
Captain (moderator)
Captain (moderator)
Damien

Posts : 3615
Join date : 2011-06-11
Age : 67
Location : Ballarat Vic. Aust.

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyTue Feb 12, 2019 11:58 pm

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyWed Feb 13, 2019 12:37 pm

After a third coat of paint the hull finally looks OK. I have also given the deck a first coat of green. The winch has some rope, and the control panel has been installed. I have failed to find or make a wheel so will have to order one which will delay glazing and roof fitting on the cabin. Crying or Very sad. There is stil more painting, and I made the steps this morning after re- cutting the sides.

Chinese Mini Tug Dscn1159

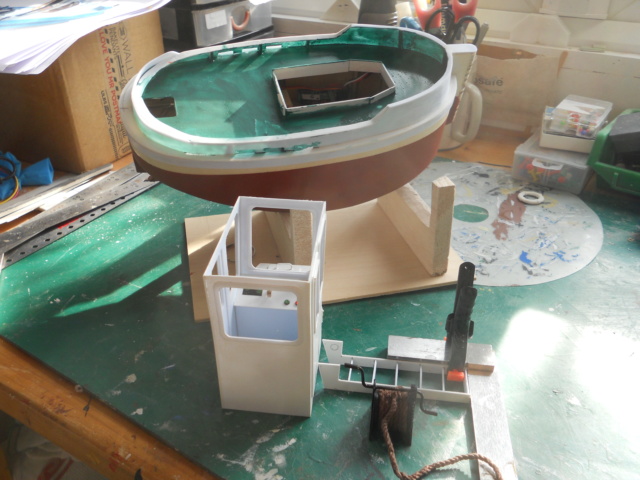

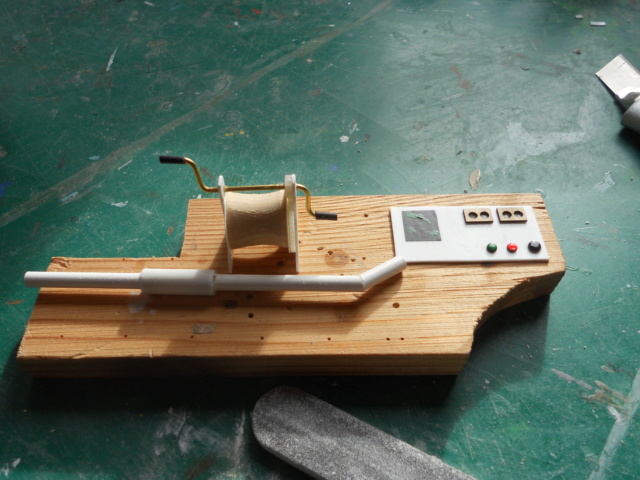

After trying the winch on the deck, I wonder if it is a little too big? The size was determined by the gear and wood cylinder I had.

Chinese Mini Tug Dscn1160

Barrie
Back to top Go down
davidjt
Master
Master
davidjt

Posts : 458
Join date : 2013-01-08
Age : 67
Location : n wales coast

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyWed Feb 13, 2019 1:36 pm

hi barrie,

it looks fine to me  on the photo 2thumbsup . have you got a figure you can stand next to it, so you can get some sort of scale, it will finish it of as well with some one stood inside cabin just a thought. does it have a scale our is it just freelance.

david
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1778
Join date : 2011-11-26
Age : 78
Location : Thaxted, Essex

Chinese Mini Tug Empty
PostSubject: Re: Chinese Mini Tug   Chinese Mini Tug EmptyWed Feb 13, 2019 5:40 pm

David,
I think the scale is supposed to be 1/18th - not one with lots of figures available. Rolling Eyes
I have a couple of figures that I can try as I really would like a 'driver'. The winch will have to do as I'm not making another. Shocked
I think it would look better as a power winch rather than manual, so I may try some modifications.
Anyway its hairdresser run than shopping in the morning. Laughing

Barrie
Back to top Go down

Chinese Mini Tug
Back to top
Page 1 of 2Go to page : 1, 2  Next

Permissions in this forum:You cannot reply to topics in this forum
TheRcModelBoatForum.com :: Modelling Categories :: Tug Boats-
Jump to:
