 Wee Nip Build

Go down
4 posters
AuthorMessage
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Wee Nip Build   Wee Nip Build EmptyWed Mar 26, 2014 9:54 pm

While i Await the varnishing and paint part of the classic build to get done, figured I'll start on my 2nd build of the year, for those wondering what's going on with the dolphin, well shes benched waiting for the summer months to get painted properly also i'm researching interiors of motor boats of that period to detail the inside so lots of work still to do on her...

Anyway back to the new build..

A wee nip is a small lightweight racing yacht with its own class, popular around my location for racing regattas and relatively cheap to build for under £100 you are able to buy the wood pack and plans for around £45 from here http://gb.trapletshop.com/wee-nip-set
There are a few parts you will have to make from scratch such as the sail, keel bulb, booms, mast but much is explained on the plan, this boat kit if however not for the 'newbiee' it dose require some skill and some interpretation of the plan to progress as well as a few skills the novice boat builder may not have, such as casting molten lead, and sail making...

This build will be on and off over a period of time, as my Father and I are doing them at the same time, (team pair) so its a joint effort to create parts such as the keel bulbs and other items for these boats.. so don't expect any mega fast progress on this one.. however... saying that  lol! .....

All the main parts are pre lazer cut in 3mm light ply, the keel, rudder and some of the supporting areas such as the keel box are made of 3mm heavy weight ply and the hull construction gose together relatively simple and fast... in fact to prove how quickly you can put a hull together heres what i've achieved in just over an hour with some glue and resin!

First things first cut out the parts from the lazer cut ply sheets and sand down the edges to kill the black crap left from the cuts.

These boats start from the Deck Down... so next up glue the 2 deck halfs together and fit the mast reinforcer in the center where instructed.

Wee Nip Build IMG_20140326_170630


Stick the transom on at the correct angle according to the plan, also dry fit and check this with the precut side panels, in my case i made 2 vertical reinforcement bars which located the transom at the correct angle.

Wee Nip Build IMG_20140326_170652
Wee Nip Build IMG_20140326_170642

Next i tacked one of the side pannels to the deck with superglue getting the shape of the pannel correct, then runnign resin down the seam to seal, glue and reinforce it

Wee Nip Build IMG_20140326_202021

Then i did the same to the other side

Wee Nip Build IMG_20140326_205826
Wee Nip Build IMG_20140326_205833
Wee Nip Build IMG_20140326_205840

While the resins is going off i put the boat back down flat on the desk and wighted it with some LA batteys,at this point you have to keep the deck flat or the hull will warp out of shape, the deck will end with a slight camber once the base panel is fitted but this will be much later in the build.

As you can see dead flat and no twist

Wee Nip Build IMG_20140326_205906
Wee Nip Build IMG_20140326_205914

Then gave it a quick rub down to clean up the seams.

This boat will be GRP'ed over the top of the hull skins in the end for the strength, although not required on the plan its a preference in my case.
Basically i hate fixing boats once i've built them so strong solid builds leads to an easy life later down the line, and since these are going to be raced, its going to take some beatings along the way I'll rather just polish out the scratches then watch it sink with a hole in the side!







_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyThu Mar 27, 2014 8:39 pm

Today I've created the Wee-nips Keel Box, the Keel & glued/resined in the bottom hull panel.


Keel box made up of heavy weight 3mm ply, and a 2mm ply insert, the keel is made from 2mm Aluminium sheet.

Wee Nip Build IMG_20140327_174056_zpsd1b92540
Wee Nip Build IMG_20140327_174103_zps4d4467c2
Wee Nip Build IMG_20140327_174217_zps691ff5b8
Wee Nip Build IMG_20140327_174559_zps7f854b10

Then mounted the keel box in place with some triangular uprights to keep it square and central

Wee Nip Build IMG_20140327_181008_zps8180f48f
Wee Nip Build IMG_20140327_193548_zpsdea8a740

Then Tacked and taped down the base panel, then covered it in resin to seal it in place.

Wee Nip Build IMG_20140327_203010_zps6e4cc5bd
Wee Nip Build IMG_20140327_203026_zps284327ff

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptySun Feb 22, 2015 9:21 pm

I won't lie, i got really lazy with this build. however i have worked out that this year i can ger probably 4 new boats on the water and 3 nearly at the same time!

So the wee nip never stopped getting worked on it was just VERY slow!

The only thing that remains for this model is the deck to get planked ( material on order ) and then painted, wired up and done.

So here's what you guys have missed since last time....

The creation of the stand, the deck fitted, the 2 mast points with brass sliding guides fitted to retain the mast ( and allow adjustments to sail position) and a big brass rudder.

Wee Nip Build F88F1888-B67D-4320-AD32-13D1DF925AEB_zps8kac2dho

Wee Nip Build F1A47BBD-BD9E-4D45-AA9B-579CE84D54C2_zpsunhtmsaa

The Keel and the moulded lead keep bulb... the keel is made from 2mm sheet aluminium and keel bulk bolted to it.

Wee Nip Build 7C411F62-CF53-47CC-BAF5-3BEBC61CF888_zpsghpivmpj

The hatch sides ( just needs the top when i plank the rest of the boat)

Wee Nip Build 13E1BE8D-7274-4762-AFCA-A7E12B807E6D_zpslkzfw5b9

The mast and boom L section, this is a lamination of 50 layers of fiber glass which i then shaped on the belt sander and then drilled out the holes for the mast and boom. ( i actually made 2 from the lamination one is used on my dads Wee nip)

Wee Nip Build 02076988-D1A5-44F0-ACE0-F05D6A24D9A6_zps8vxixirb

The boom & mast are made from carbon fiber...

Wee Nip Build 8110BC21-5236-4AA3-8295-C931A6DA3D1C_zpsgyxrhvwc

Wee Nip Build 698CD65E-C58F-4B3B-96A5-E7B6DB749373_zpsikehvoh6

The sail is made from ripcore material and the supporting taped edges for re-inforcment.

Wee Nip Build 43B81B7A-A552-4BD9-9B97-F507FC6C8790_zpsg0jiezco

Wee Nip Build 5562E273-0DDF-44E6-9A25-D761F870DA03_zpsin9pxtji

Only thing left is as i said, deck planked, painted, and wire the bugger up and shes ready to go!






_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyWed Feb 25, 2015 12:22 am

I'm a little side tracked from doing the Jenny, so while i prep up the next parts to the build, im back on the wee nip, and to be honest this is always my fav part of any build, planking Very Happy

So ok, here i'm going to do very simple planking, no cut-in's but im going to use a 10mm king plank as the central line and then diagonal planking for the decorative feature, finished off with a smoother over lap on the outer edge in 2mm..

First off i'm going to start with the hatch, top, the sides i wi'll do as i work back on the main deck due to the thickness of the material, i want to set a slot down the hatch edge so it acts as a 2 layer type combing, as the hatch combing is only 5mm in hight it dos'nt leave a lot to keep the hatch sealed, so this will maximized that sealing effect, until i can work out a way to keep the hatch down with out unsightly fixtures on the deck.

So as you can see from the photo, the king plank is laid, its 2x5mm mahogany strips,, now to start the diagonals its very hard to judge your planks to give you a great finish, you may end up with odd plank edges in areas which can be unpleasing to the eye..
so in this instance i've set the planks edge point to the tip of one of the corners of the hatch frame work, now i could measure from the top to the bottom in 5mm intervals to work out a 'perfect' plank layout, however perfection comes from imperfections, so' i'm opting to do this basically from eye. (this no way means this is the right way, but seeing how this boat is not to any scale it dos'
I've also cut up a 1mm ply 45 degree angle template to allow for the fixture of the first few planks to ensure they are perfectly laid this will aid me in keeping the opposing sides level (nothing worse then seeing a deck with planks starting to spread out)
The template will also aid me in doing the deck planks so that they are also as the Exact same angle as the hatch.

Wee Nip Build B816DFBF-3F94-44F5-BDFE-688EBA24664C_zpsq8xjd9kj

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyWed Feb 25, 2015 3:56 am

Well this is the result for 2 hours work, given up for the night to let the glue set before i hammer the rest of it tomorrow.

Wee Nip Build 9AB878A5-1B1C-4EC2-AAF7-CF42387AF6D2_zpsbulbu3v4



_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyWed Feb 25, 2015 6:21 pm

Half the hatch done Very Happy me lovies planking Very Happy

Wee Nip Build 38EBC3EB-D42B-44B8-8333-396403777AC5_zpsrf0nirh9


_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyWed Feb 25, 2015 9:09 pm

Hatch finished. (almost!)

Very Happy

Wee Nip Build 4B01C32B-F12E-4458-8078-7144437BF690_zpsannqz4x9



_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
davidjt
Forum Sponsor
Forum Sponsor
davidjt


Posts : 534
Join date : 2013-01-08
Age : 72
Location : n wales coast

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyFri Feb 27, 2015 3:00 pm

looking  good 2thumbsup 2thumbsup 2thumbsup i was going to build this years ago, never got round to getting the plans though nice boat design.

david
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyFri Feb 27, 2015 10:24 pm

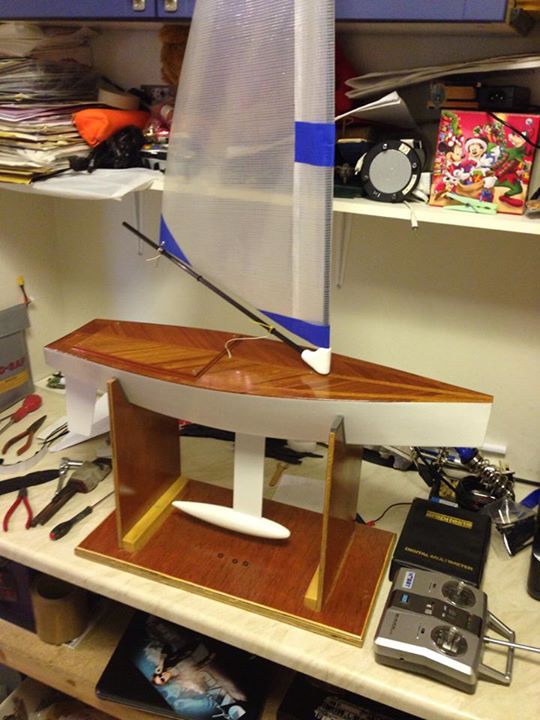

I was going to show you guys this at the end .. but really i couldnt wait, i figured since these models are just for fun sailing and not based on anything specific creative freedom is a must to make your unique, most of the ones i've seen are painted 2 tone, or just varnished ply surfaces. Now i'm not one for just building a model,each has to have some character to it that represents me, so for the weenip, not only will this one get a planked deck, it also gets a very unique transom...

Enjoy

Wee Nip Build 35AA2E56-A85A-4FF1-9680-FEBC38C6247A_zpsd2yqkc7w

Wee Nip Build 373FC7C7-AA3D-446E-A007-5D608CE1A4C2_zpsnvwwvdmv

Wee Nip Build 4EC08261-6D27-442C-B09E-6A5A4581932A_zpso2qvmcir

Wee Nip Build 052D8969-0318-4D03-8982-D3EF920E19B8_zpsldprwdfd

Wee Nip Build E281F4B7-22D2-4E8A-BE68-4B6C5752A83A_zpsx6ifac62

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyFri Feb 27, 2015 10:32 pm

davidjt wrote:
looking  good 2thumbsup 2thumbsup 2thumbsup i was going to build this years ago, never got round to getting the plans though nice boat design.

david

you can pick up the plan and wood kit from Trapet for around £40 if i remember, the ply is not really hard enough it marks extremely easily, for the price its fine, although if buying the wood pack I would strongly recommend a dope coat to harden the surfaces. with all the other materials including the mast (carbon fiber) and the sails material, tape from Nylets, 2 servos ( 1 a 15kg heavy duty servo) you overall cost for the build works out around £150 finished. this ones a bit over that price with the planked deck, you can do it cheaper if you want, i tend to not worry when it comes to model cost, i count the pennys and budget, but always aim for a look or style and spend accordingly.

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyTue Mar 03, 2015 10:43 pm

Plankie plankie plankie plankie

Wee Nip Build 6E71B1F5-4744-4D5D-AED9-EEB8A1562543_zpsoqwxcui3

Wee Nip Build 71D64B07-6171-471C-A652-849CFC7D961E_zpscx0c2ndq

Wee Nip Build D26D2058-64C9-4BD0-8D9D-BAF9F11E0C02_zpsqchtng6u

Wee Nip Build 426AD20E-756C-44ED-815D-96E2813A60E4_zpsa0yvy03y

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyMon Mar 09, 2015 3:14 pm

Planking all finished now to spend the next week sanding and finishing for the varnish coats over the weekend.

Starting with 240 grit to 380, 600 then 1000 for the varnish surface.


Wee Nip Build D0447ECC-A678-48C4-A442-20593E7F51A6_zpsa0xvuqnb

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Tug--Kenny
Lost But Never Forgotten R.I.P
Tug--Kenny


Posts : 284
Join date : 2011-06-11
Age : 82
Location : Newport, South Wales,UK

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyWed Mar 11, 2015 10:57 am

A very nice job you've made of that planking.  A pleasure to watch the progress.

Well done indeed.

Cheers

ken
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyWed Mar 11, 2015 1:52 pm

Thanks for that Ken, nice to see you bud, hows life?

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Tug--Kenny
Lost But Never Forgotten R.I.P
Tug--Kenny


Posts : 284
Join date : 2011-06-11
Age : 82
Location : Newport, South Wales,UK

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyWed Mar 11, 2015 8:52 pm

Life is still good at the moment.  Signs of age creeping in but I do like to keep busy.  I hope that you and the family are doing well.

I am at present attempting a scratch build of the Seabex one.  To me it epitomises everything that can be added to a model boat Very Happy . That's why I appreciate others workmanship as I'm still learning, even after 22 boats.  I shall be planking soon so how it's done is always useful info.

Can't wait to see your next varnish job as I could never achieve the finish that you get.

Cheers for now

ken
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyWed Mar 11, 2015 9:34 pm

Thats quite a model to undertake Ken, good luck,

 If your going for a planked hull, i would suggest double diagonal planking, 2 layers, first diagonal set one direction (usually a substandard wood like balsa)2nd final 'skin' ( a more dense wood, like lime or cedar) opposite direction  more like cross hatching, The reason i suggest diagonal planking it allows for easier curvatures of planks through the boats shape and the 2nd layer allows for overall strength, then once all done, glass the inside and dope coat the outside. this keeps the hull reasonably light weight, but very strong.

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Tug--Kenny
Lost But Never Forgotten R.I.P
Tug--Kenny


Posts : 284
Join date : 2011-06-11
Age : 82
Location : Newport, South Wales,UK

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyFri Mar 13, 2015 8:03 pm

Thank you for the help. I'm not quite at this stage yet, but hope to be soon. You're right, it's quite a monster and I really am enjoying working out the problems.

As an aside, I've just noticed the Adverts running along the top of the page.  Mine today was showing Ebay and it recommended the scale people for my latest build that I researched last night.  I feel as if I'm being followed all over the Web.  Anybody else notice anything like this before.

Cheers

ken
Back to top Go down
Guest
Guest




Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyFri Mar 13, 2015 11:38 pm

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptySun Apr 05, 2015 1:55 pm

Well home from hospital now although finding energy to do much other then sleep is such a drain at the moment, i did however get perked up by my old man when he said he spent the the last few weeks while i was in hospital varnishing my wee nip and polishing it.

The varnish surface is yet again another of the 2 pac epoxy varnishes, produced by rustins, you have all seen other projects i've used it on before, and a few more to come!

Just a few photos, i'm hoping i can find some enthusiasm later this week to put a coat of paint on her and start to bring this model to a close.

Wee Nip Build B39787A2-8FE1-4EF4-A1B9-1410357A9AC7_zpslrfrgsnu


Wee Nip Build D0E41CD6-C01C-4182-B1B7-4EEC16EFA601_zpsq6dgrbjz

Wee Nip Build 3214872B-E5AF-4AAC-A6DC-60DCF96679FB_zpsxuuordjb

Wee Nip Build 2C447E66-8AE4-418C-988E-14D7966C10B1_zpsr3why3p1

Wee Nip Build 445BF8F4-2A62-46B6-A98C-3726D1F9D963_zpsgvsmhopu

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Guest
Guest




Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptySun Apr 05, 2015 2:27 pm

That's a super finish Aron and the planking is outstanding.  2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
emrys
Able Seaman
Able Seaman



Posts : 35
Join date : 2015-02-18

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyMon Apr 20, 2015 10:37 am

Damien wrote:
That's a super finish Aron and the planking is outstanding.  2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup

I agree - that is planking and finishing that most folks could only dream of achieving. Wonderful work.
Back to top Go down
Guest
Guest




Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyMon Apr 20, 2015 1:19 pm

beautiful beautiful work.................you are a true master of timber Aron............the finish is superb
Back to top Go down
Tug--Kenny
Lost But Never Forgotten R.I.P
Tug--Kenny


Posts : 284
Join date : 2011-06-11
Age : 82
Location : Newport, South Wales,UK

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyMon Apr 20, 2015 8:07 pm

Gorgeous effect.  A lot of work has gone into this.  Well done  cheers

ken
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyTue Apr 28, 2015 11:42 pm

Thanks guys for all your kind comments, work is progressing kinda slow given my illness at present but progress is coming none the less, over the past 3 weeks the hull has been painted and set aside for 2 weeks in the sun to bake, now allowing for final rubdown and polishing, also the hatch has been finished, a final set of stainless steel nuts and bolts to bolt down the hatch sitting in a brass sleeve.

Sadly the hatch started to warp badly, simply due to there being no real structure on its underside, i knew this was a risk when i started the hatch but given the limited space with the coving to water tight the hull, as well as the hight of the servos, arms and other parts inside there was no real space to create a hatch form to keep its shape, so now it rely's purely on the 4 hatch screws to keep its shape its not all bad but when the hatch is off and in the sun it starts to move around.
The hatch nuts are secured into corner ply cut outs which are glued to the underside of the coving corners.
Although not what I was aiming for its still a tidy finish and dose not really ruin the overall look.

Wee Nip Build 11157348_10203839648221113_780921657271419904_o_zpsgh3wkvwd

Wee Nip Build 11196591_10203833527628102_1266477343_o_zpsfcamegpo

Wee Nip Build 11187295_10203839670901680_8452057755748514979_o_zps7uzridw4

only remains jobs on this project is finishing off the keel shaping, and paint, a rubber nose bumper, rigging up and final polishing of the boat. I'm aiming to see if i can get a sail this weekend, but thats subject to the getting the keel painted.

RR

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Guest
Guest




Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyWed Apr 29, 2015 1:07 am

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyWed Apr 29, 2015 11:28 pm

Today works progressing at more of a pace, simply as the finishing line is in sight now, not much left to do to get this boat ready for a sea trial.

So today I've sprayed up the keel and bulb along with the mast and boom knuckle, those are left over night in the airing cupboard to harden off to be final fitted to the hull tomorrow, the battery tray has been mounted inside awaiting the battery tray, and other last electrical items to be fixed in place.

Those were the smaller jobs, leaving me only to create a bow bumper, final rub down of the hull and polish the boat, and rigging up the boat.

But today i wanted to finish all the detailing on the deck.  This involved a bit of lathe work, creating 2 brass 8 mm sleeve/guides for the mast holes, if some of you are wondering the wee nips have more then 1 mast positioning hole in there decks, the original kit provides you with 5, 1/2" spacing options, however after much trial with other wee nips from the club we have found the first 2 forward holes provide the best positions of the sail maximising speed as well as reducing duck diving, as you can see from my deck i have opted to only leave the first 2 mast holes open and these hole need tidying up.

Wee Nip Build 11207878_10203844045291037_1639354438_o_zpsutzdjjuq

So after a couple of house messing up i have finally created 2x 8mm bras sleeves, and reamed out the holes to take the brass work,

However to created the brass sleeves they had to be cut a little longer (other wise the chuck wouldn't have held the material) so they required trimming down a tad with a file, reason for this is i cant cut 2mm with out the material warping as its so thin at this stage, and the sleeve has to be 2mm as that the thickness of the deck what you don;t see easily is the brass sleeve that supports the mast and water proofs the hull.

Wee Nip Build 11180394_10203844044771024_592779515_o_zpspaxtpn8l

Wee Nip Build 11202670_10203844044251011_527799955_o_zpseyc3bxvk

Wee Nip Build 11171816_10203844042530968_924252812_o_zpsmd32caq1

Next job after dry fitting to make sure its all correct, just epoxy them into place, not only making the area look pretty but also seals the woods edge now the varnish has been removed.

Wee Nip Build 11182997_10203844042010955_1278051453_o_zps9uipcwru

Wee Nip Build 11181985_10203844041210935_1734182437_o_zpsngassfyl

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyFri May 01, 2015 8:29 pm

Almost there, tomorrow I'm 100% sure it will be finished. (hopefully)

Silicon bow piece is still firming up in the mould, this morning it was still a little soft this afternoon is almost rock solid, so i expect by tomorrow afternoon I'll pop it from the mould and see what we have.

Today I've rigged up the boat, and set in the electrics although not neatly yet, as i still have to fix a glitch in the battery harness, but you get the rough idea where its all sitting, I've opted to run this on 27mhz rather then 2.4 simply as everyone is using 2.4 and i have so many spare transmitter sets laying around its about time i used a few, i will however swap out the crystal to a split, or use channel 0/1 black.

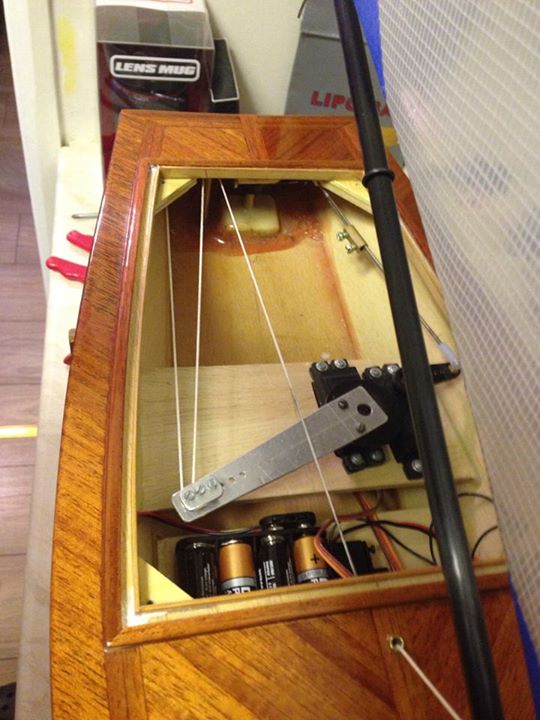

I've photographed the internal winch/pulley system that powers the boom, hopefully this will help people who need to work out how that works should they build there own later, the way the line and servo arm, pulley is set up you get to pull the boom hard to 0 degrees (although never needed to get to 0) and the boom will go hard to 90 degrees out. so full control on the sail with very little strain on the 15kg servo.

If you need to adjust the sail there are methods to which i will explain in tomorrows post as tonight I'm creating the adjustment piece to fit to the boom allowing for adjustment when using other sail hole positions, you can of course use blocks if needs be to tension the line but that will be a last ''Tuning'' resort.

Wee Nip Build Wee_ni10

Wee Nip Build Wee_ni11

Wee Nip Build We_nip10

Wee Nip Build Wee_ni12

Wee Nip Build Wee_ni13

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptySat May 02, 2015 3:54 pm

End is here, almost the bulk to the boat is now done and ready for a sail, but there are some other adjustments i'm making to the boat, one being enforcing the hatch to stop it warping and eventually cracking the epoxy finish. this just involved making up and internal frame and expoxing it place to stiffen the hatch. nothing special.

Today I popped the silicone nose out of the mould, turned out quite well and just stuck it to the bow using some flexibond super cyno.

Wee Nip Build 410

Wee Nip Build 310

Next post is all about the rig setup its not overly complicated, however the plans do not help everyone decipher how it all works or how it should work.

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptySat May 02, 2015 4:27 pm

This post is all about the rig.

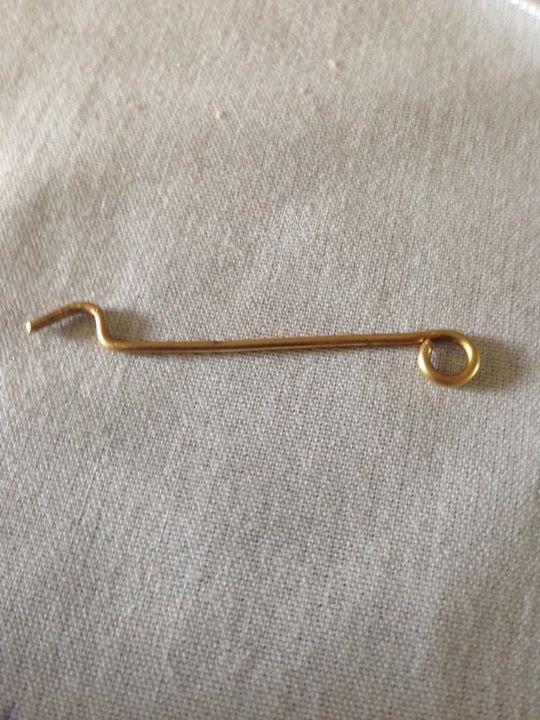

first up you have to create a method to attach the line to the boom. In this case i have bent a piece of 1.5mm steel into the following shape.. (the photo is of a brass one but i ended up re-making it using steel as the brass was to soft to hold the line and just flexed eventually it would snap.)

Wee Nip Build 510


Then at the base of the boom i have drilled 3 holes to mount the metal arm into and allow forward and backward adjustment ( this is for when i move the mast to a different position in the deck)  this keeps the line taught to the internal setup inside mainly but can be used for a minor adjustment to taught the line if needs be.

The boom hole positions are dictated by your own servo setup, armature, pulley systems you opt to use so please don't ask for the distances from fixed points as every boat is different.

The easiest way to find those hole points is using this method to secure your line is to use a cable tie and hold the line to the boom and play with your controller and see what throws you get adjust the cable tie up and down the boom until u find the correct amount of throw for the boom and then you can make up positions to make you fixed point(s).

Using the hole and some rubber O rings you an secure the metal arm into place on the boom, using fishing clips you can secure the line to the boom and allow for quick release and de-rigging with literally 1 click!

Wee Nip Build 210

Wee Nip Build 111

For adjusting the rig its self you need to use some form of pulley system in this case the photo explains it all and where i can made adjustments to tighten the line, although i have said use a pulley system there have been many occasions where a pulley system is not used to pull the line and direct servo pull is used.
However if you intend to follow the plan then the photo below is the best way to see how it all works, but keep in mind that the line is not exact to the plans location!, all my line is kept inside the hull until the very end, the original plans shows the last length of line from the tackle block up out of the rear of the boat, across the deck to the mast and up to the boom, although this method works well, i opted to just keep the line inside the hull but at the cost of the hatch being quite flimsy as i have little room inside.

Just to give you guys an example i have included (last 2 photos) my dads wee nip and his difference in rig setups, he did NOT follow the plan but ended up with similar results just lacking full adjust ability.


My setup (almost as per plan)

Wee Nip Build Weenip10

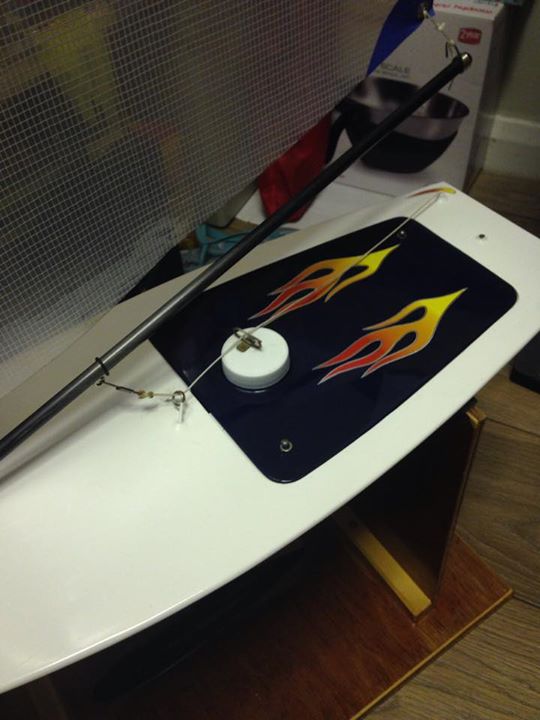

Dads Rig setup..

Wee Nip Build 1_110

Wee Nip Build 1_210


Apart from that the boats all finished, Named Sirena (after one of the water goodnesses) and her number well UJ32 is Union Jack and my club membership number lol! hope you guys enjoyed the build, any questions feel free to ask!

Wish me luck for Sunday sail! and don't worry I'll post photos~!

Wee Nip Build Weenip11

Wee Nip Build Weenip12


RR

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Guest
Guest




Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptySun May 03, 2015 9:47 am

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup Marvelous Aron.  2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
Roadrunner
Forum Overlord
Forum Overlord
Roadrunner


Posts : 1714
Join date : 2011-06-10

Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptySun May 03, 2015 7:13 pm

And as promised one successful sail, wind was a lot stronger then recommended for these but she handled it well, no water ingress on the inside after a good 2 hours of chop. although i may need to look at the hatch coving once its dried out, i have a feeling one of the edges have swelled slightly, so a simple issue of addressing this later with some more sealer or vanish.

Overall pleased with the outcome and looking forward to challenging the other club members on the course this year.


Wee Nip Build Weenip13

Wee Nip Build Weenip14

Wee Nip Build Weenip15

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
https://www.thercmodelboatforum.com
Guest
Guest




Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build EmptyTue May 05, 2015 10:45 am

Congratulations Aron on a  great build and successful model.  2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
Sponsored content





Wee Nip Build Empty
PostSubject: Re: Wee Nip Build   Wee Nip Build Empty

Back to top Go down

Wee Nip Build
Back to top
Page 1 of 1
 Similar topics
-
» 1950s Whitstable Fishing Boat
» Next Build Tug
» HMS Hood
» Mantis build
» Pilot 40

Permissions in this forum:You cannot reply to topics in this forum
TheRcModelBoatForum.com :: Modelling Categories & Archived Build Logs :: Rag & Stick-
Jump to:
