After completing the Coastguard tug, I bought a Revell tug kit. This is quite a bit smaller, and is proving quite a challenge. I have so far fitted the motor and prop shaft, modified the rudder and am currently trying to make up a suitable tiller and linkage to the micro servo. There will be quite good access when the deck is on, although I will need to shorten the deck at the stern to allow access to the tiller. This will be covered by the rope deck.

Barrie


Back to top Go down
Damien
Captain (moderator)
Captain (moderator)
avatar

Posts : 2684
Join date : 2011-06-11
Age : 65
Location : Ballarat Vic. Aust.

PostSubject: Re: Plastic Magic again!   Tue Jun 02, 2015 10:30 am

Very nice Barrie.  2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
Tug--Kenny
Master
Master
avatar

Posts : 285
Join date : 2011-06-11
Age : 75
Location : Newport, South Wales,UK

PostSubject: Re: Plastic Magic again!   Tue Jun 02, 2015 10:57 am

That tiller access is the world's smallest.

My goodness,  you've got your work cut out. study

keep the pictures coming

ken
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1264
Join date : 2011-11-26
Age : 76
Location : Thaxted, Essex

PostSubject: Re: Plastic Magic again!   Tue Jun 02, 2015 1:14 pm

No progress today but I realised that if I can find a way of extending the rudder shaft, then I can go higher giving me more room for the tiller.

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1264
Join date : 2011-11-26
Age : 76
Location : Thaxted, Essex

PostSubject: Re: Plastic Magic again!   Wed Jun 03, 2015 6:01 pm

I had to abandon the original plan. I have removed the moulded in rudder shaft and replaced it with a piece of brass rod. This has enabled me to raise the tiller and allow more travel. I also fixed a platform for the servo, next job is to change the connector on the servo, mount it and make a linkage.

Barrie

Back to top Go down
Damien
Captain (moderator)
Captain (moderator)
avatar

Posts : 2684
Join date : 2011-06-11
Age : 65
Location : Ballarat Vic. Aust.

PostSubject: Re: Plastic Magic again!   Thu Jun 04, 2015 1:24 am

2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1264
Join date : 2011-11-26
Age : 76
Location : Thaxted, Essex

PostSubject: Re: Plastic Magic again!   Fri Jun 05, 2015 6:30 pm

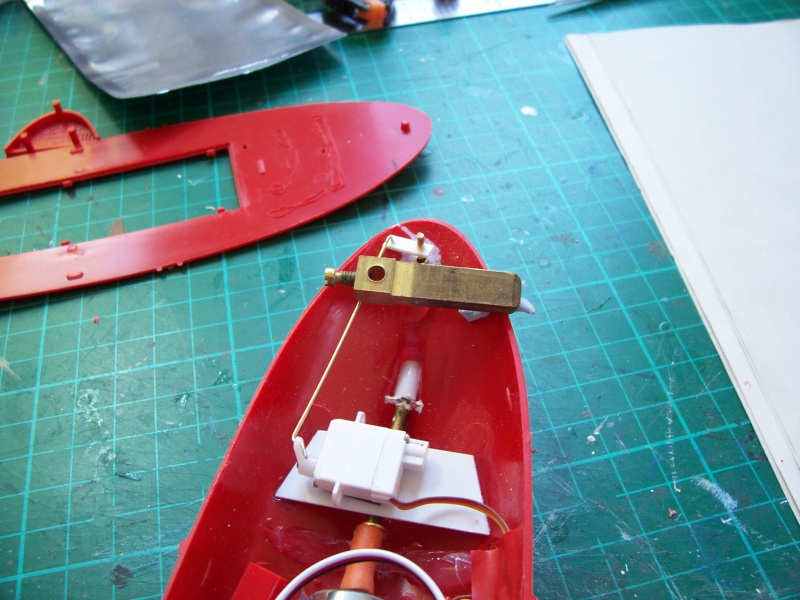

The servo connector has been changed to a standard Futaba type, and the servo stuck down with double sided tape. The linkage is made. Using the brass rudder post has given me the problem I was trying to avoid by using the moulded plastic one - getting the tiller to stick to the post. Super glue didn't seem to be holding. Crying or Very sad  I may need to make a brass tiller so I can solder them together.

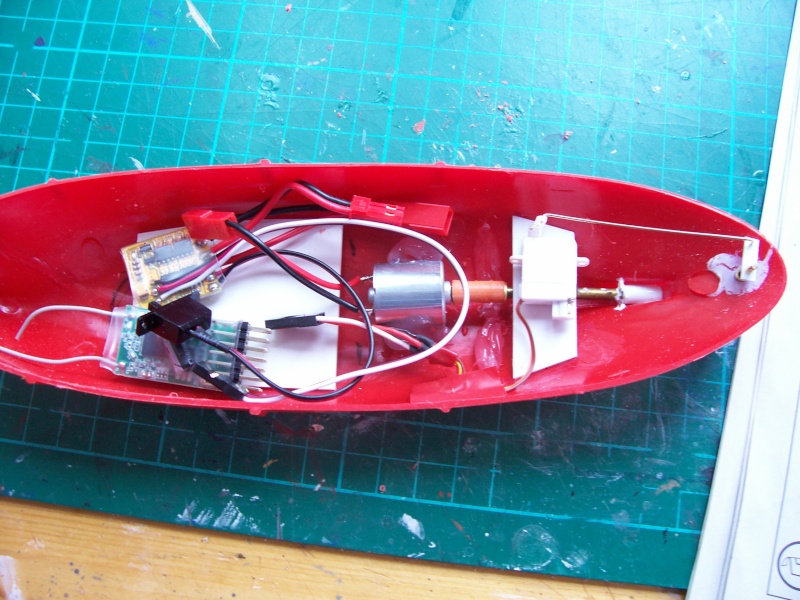

As you can see, there is just room for all the bits, the battery will sit on top of the receiver and ESC right into the bows.

Next job is fitting the deck - when I tried it today, it seemed to be too big, which I guess means the hull has distorted.  Sad Rolling Eyes Crying or Very sad

Barrie

Back to top Go down
Tug--Kenny
Master
Master
avatar

Posts : 285
Join date : 2011-06-11
Age : 75
Location : Newport, South Wales,UK

PostSubject: Re: Plastic Magic again!   Fri Jun 05, 2015 8:46 pm

Can you get the tiller arm down to rest on top of the shaft.  Then cut the surplus from above the arm.  Also, to save height problems,  you could connect the linkage below the tiller arm.

Just a few thoughts.

 Cheers  ken
Back to top Go down
Roadrunner
Admin
Admin
avatar

Posts : 1004
Join date : 2011-06-10
Age : 36
Location : Aberdare South Wales

PostSubject: Re: Plastic Magic again!   Sat Jun 06, 2015 12:50 am

Top job  2thumbsup

_________________
I'm  Not  Anti-Social,  I'm  Anti-Stupid.
Back to top Go down
http://www.thercmodelboatforum.com
barriew
Captain (moderator)
Captain (moderator)


Posts : 1264
Join date : 2011-11-26
Age : 76
Location : Thaxted, Essex

PostSubject: Re: Plastic Magic again!   Sat Jun 06, 2015 7:01 am

Tug--Kenny wrote:
Can you get the tiller arm down to rest on top of the shaft.  Then cut the surplus from above the arm.  Also, to save height problems,  you could connect the linkage below the tiller arm.

Just a few thoughts.

 Cheers  ken
Ken,

The surplus isn't really a problem as there will be no deck above it - the rope deck sits clear of the deck by about 5mm. If I lower the arm, I get less throw. My problem is getting the arm fixed to the shaft.  Rolling Eyes

Barrie
Back to top Go down
Tug--Kenny
Master
Master
avatar

Posts : 285
Join date : 2011-06-11
Age : 75
Location : Newport, South Wales,UK

PostSubject: Re: Plastic Magic again!   Sat Jun 06, 2015 11:02 am

If you use the brass pin from a 13 amp plug, there will be a screw in the end.  This can be tightened onto a small flat on the shaft.   Cool

cheers

ken
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1264
Join date : 2011-11-26
Age : 76
Location : Thaxted, Essex

PostSubject: Re: Plastic Magic again!   Sat Jun 06, 2015 4:27 pm

Tug--Kenny wrote:
If you use the brass pin from a 13 amp plug, there will be a screw in the end.  This can be tightened onto a small flat on the shaft.   Cool

cheers

ken
Hi Ken - its a good idea - I use it on larger models, however in this case there is a small issue of size  lol! lol!



As it happens, the super glue seems to have worked.

Barrie
Back to top Go down
Tug--Kenny
Master
Master
avatar

Posts : 285
Join date : 2011-06-11
Age : 75
Location : Newport, South Wales,UK

PostSubject: Re: Plastic Magic again!   Mon Jun 08, 2015 9:15 pm

lol!

 I see your point.  Silly me not realising the sizes involved.

Don't tell anyone.

ken
Back to top Go down
nhp651
Captain (moderator)
Captain (moderator)
avatar

Posts : 2761
Join date : 2011-06-11
Age : 66
Location : Fleetwood Lancashire

PostSubject: Re: Plastic Magic again!   Mon Jun 08, 2015 11:55 pm

I won't matey, lol
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1264
Join date : 2011-11-26
Age : 76
Location : Thaxted, Essex

PostSubject: Re: Plastic Magic again!   Wed Jun 10, 2015 7:44 pm

I narrowly averted disaster today Shocked Shocked I was fitting the gunwales and had got them both glued along about half their length when I realised that I had them on back to front  Rolling Eyes Embarassed Crying or Very sad I was just in time to remove them before the glue hardened.
They are now installed correctly and glued again half way. hopefully I will finish them tomorrow.

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1264
Join date : 2011-11-26
Age : 76
Location : Thaxted, Essex

PostSubject: Re: Plastic Magic again!   Thu Jun 11, 2015 5:59 pm

Gunwales now correctly ( more or less  Wink ) installed. I had to create a bit of deck to replace that which I had removed. I have also done a bit more to the superstructure - the lower cabin is now complete. I am currently working out how to fit it to the deck. The hole is smaller than the cabin, so a normal coaming doesn't work. I am trying a 'reverse coaming'  Rolling Eyes , but will have to find a way to fasten it down.

Barrie


Back to top Go down
nhp651
Captain (moderator)
Captain (moderator)
avatar

Posts : 2761
Join date : 2011-06-11
Age : 66
Location : Fleetwood Lancashire

PostSubject: Re: Plastic Magic again!   Thu Jun 11, 2015 6:31 pm

i like this more and more...........and it's a lovely tug to model.......reminds me of the little Ryhope i have waiting to finish.
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)


Posts : 1264
Join date : 2011-11-26
Age : 76
Location : Thaxted, Essex

PostSubject: Re: Plastic Magic again!   Thu Jun 11, 2015 6:52 pm

Its going to be a nightmare to paint. So much of the detail is moulded into the deck and cabin, I am not sure I am good enough to be able to pick it out with a paintbrush.

When these two projects are finished I'm going back to something a little bigger lol! lol! lol!

Barrie
Back to top Go down
Roadrunner
Admin
Admin
avatar

Posts : 1004
Join date : 2011-06-10
Age : 36
Location : Aberdare South Wales

PostSubject: Re: Plastic Magic again!   Thu Jun 11, 2015 8:07 pm

when it comes to detailing very small models i always opt to dry brush over the detail areas, this way you get the detail but also get a shadow effect over the surrounding areas which if you dry brush in say blacks and browns gives you a highlighted detail and a rusted effect, this also works with white and brown, and very vivid colours extremely well.
Back to top Go down
http://www.thercmodelboatforum.com
barriew
Captain (moderator)
Captain (moderator)


Posts : 1264
Join date : 2011-11-26
Age : 76
Location : Thaxted, Essex

PostSubject: Re: Plastic Magic again!   Mon Jun 15, 2015 6:00 pm

I have now started painting the hull - two coats of black so far. I wont bother with a waterline. I have also started painting some of the small fittings - very small  Rolling Eyes Next is the deck, then I can fit the larger fittings. I don't think I am going to add the fenders, except for the bow.They don't look right.

Barrie
Back to top Go down
